| الاسم التجاري: | Great wall |
| رقم الطراز: | النيوديميوم المغناطيس |
| الـ MOQ: | 100 قطعة / قطع |
| السعر: | $0.50 - $200.00 / Piece |
| تفاصيل التعبئة: | حزمة درع مغناطيسي للشحنات السريعة والجوية عن طريق وضع صفائح / ألواح حديدية بين شكل الرغوة والكرتون ا |
|
اسم المنتج
|

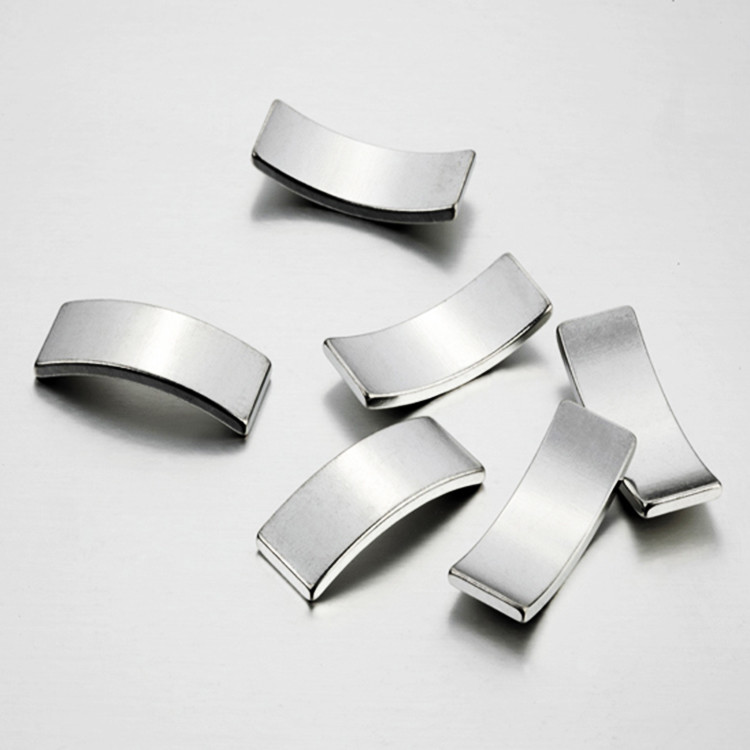

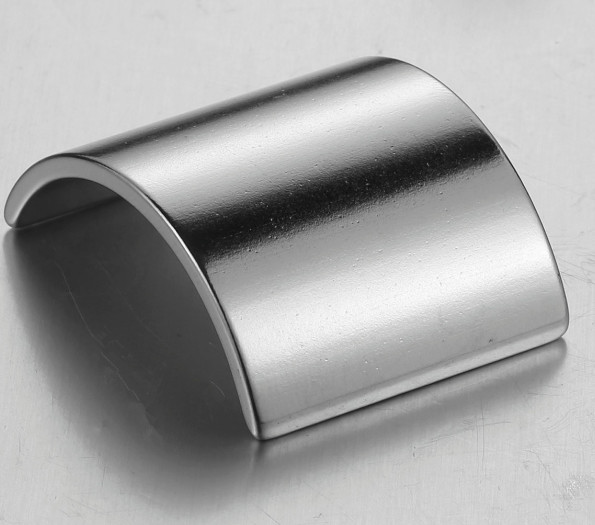

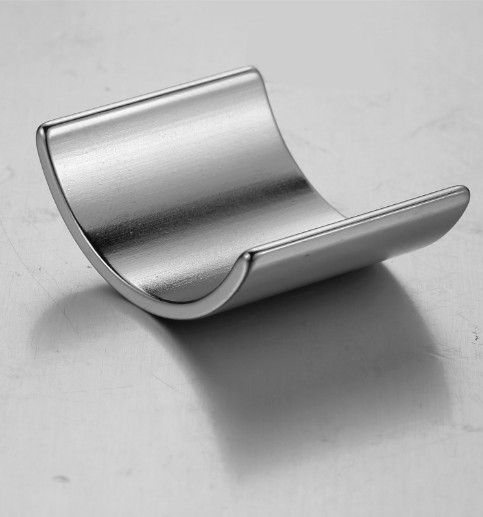

تيار مستمر محرك كهربائي مغناطيس دائم لمواد المحرك المبتدئين
|
|
مكان المنشأ
|
تشونغتشينغ ، الصين
|
|
بحجم
|
حسب الطلب
|
|
تطبيق
|
الاستشعار / التعليم / العلوم
|
|
مادة
|
النيكو
|
|
شهادة
|
بنفايات
|
|
تسامح
|
0/01 - + / - 0.05 مم
|
|
سمات
|
صديق للبيئة
|
|
اتجاهات المغنطة
|
حسب الطلب
|
الأداء المغناطيسي
| غرض | درجة | البقية. | القوة القهرية؛ | قوة الإكراه | المنتج Max BH ؛ | عمل | ||||||||
| ش | HcB | HcJ | (BH) كحد أقصى | مؤقت. | ||||||||||
| KGs | تي | KOe | KA / م | KOe | KA / م | MGOe | كيلوجول / م | درجة مئوية | ||||||
| الأعلى. | دقيقة. | الأعلى. | دقيقة. | الأعلى | دقيقة. | الأعلى. | دقيقة. | |||||||
| ن | N40 | 13.2 | 12.6 | 1.32 | 1.26 | ≥10.5 | ≥836 | > = 12 | > = 954 | 42 | 38 | 334 | 289 | ≤80 |
| N42 | 13.5 | 12.9 | 1.35 | 1.3 | ≥10.5 | ≥836 | > = 12 | > = 954 | 44 | 40 | 350 | 318 | ≤80 | |
| N45 | 13.8 | 13.2 | 1.38 | 1.32 | ≥10.5 | ≥836 | > = 12 | > = 954 | 46 | 42 | 366 | 334 | ≤80 | |
| N48 | 14.2 | 13.7 | 1.43 | 1.37 | ≥10.5 | ≥836 | > = 11 | > = 876 | 49 | 45 | 390 | 358 | ≤80 | |
| N50 | 14.5 | 14.0 | 1.45 | 1.4 | ≥10.5 | ≥836 | > = 11 | > = 876 | 51 | 47 | 406 | 374 | <= 80 | |
| N52 | 14.8 | 14.4 | 1.48 | 1.44 | ≥10.5 | > = 836 | > = 11 | > = 876 | 53 | 49 | 422 | 390 | <= 80 | |
| N55 | 1.52 | 14.6 | 1.52 | 1.46 | ≥9.0 | > = 716 | ≥11.0 | > = 876 | 56 | 52 | 446 | 414 | <= 80 | |
| م | N38M | 12.8 | 12.3 | 1.3 | 1.23 | ≥11.6 | > = 915 | > = 14 | > = 1114 | 40 | 36 | 318 | 287 | <= 100 |
| N40 م | 13.2 | 12.6 | 1.32 | 1.26 | ≥11.8 | > = 939 | > = 14 | > = 1114 | 42 | 38 | 334 | 289 | <= 100 | |
| N42M | 13.5 | 12.9 | 1.35 | 1.3 | ≥12.0 | > = 955 | > = 14 | > = 1114 | 44 | 40 | 350 | 318 | <= 100 | |
| N45 م | 13.8 | 13.2 | 1.38 | 1.32 | ≥12.5 | > = 994 | > = 14 | > = 1114 | 46 | 42 | 366 | 334 | <= 100 | |
| N48 م | 14.2 | 13.7 | 1.42 | 1.37 | ≥12.8 | > = 1018 | > = 14 | > = 1114 | 49 | 45 | 390 | 358 | <= 100 | |
| N50M | 14.5 | 14 | 1.45 | 1.4 | ≥13.0 | > = 1042 | > = 14 | > = 1114 | 51 | 47 | 406 | 374 | <= 100 | |
| N52M | 14.8 | 14.2 | 1.48 | 1.42 | ≥13.0 | > = 1035 | > = 14 | > = 1114 | 53 | 48.5 | 422 | 386 | <= 100 | |
| ح | N35H | 12.5 | 11.8 | 1.25 | 1.18 | ≥11.0 | > = 875 | > = 17 | > = 1353 | 37 | 33 | 295 | 263 | <= 120 |
| N38H | 12.8 | 12.3 | 1.3 | 1.23 | ≥11.6 | > = 915 | > = 17 | > = 1353 | 40 | 36 | 318 | 287 | <= 120 | |
| N41H | 13.2 | 12.6 | 1.32 | 1.26 | ≥11.8 | > = 939 | > = 17 | > = 1274 | 42 | 38 | 334 | 302 | <= 120 | |
| N44H | 13.7 | 13 | 1.37 | 1.3 | ≥12.1 | > = 963 | > = 16 | > = 1274 | 45 | 41 | 358 | 326 | <= 120 | |
| N46H | 13.8 | 13.2 | 1.38 | 1.32 | ≥12.2 | > = 971 | > = 16 | > = 1274 | 47 | 43 | 374 | 342 | <= 120 | |
| N48H | 14.2 | 13.7 | 1.42 | 1.37 | ≥12.7 | > = 1011 | > = 16 | > = 1274 | 49 | 45 | 390 | 358 | <= 120 | |
| ش | N35SH | 12.5 | 11.8 | 1.25 | 1.18 | ≥11.0 | > = 876 | > = 20 | > = 1592 | 37 | 33 | 295 | 263 | <= 150 |
| N39SH | 13 | 12.3 | 1.3 | 1.23 | ≥11.6 | > = 923 | > = 20 | > = 1592 | 40 | 36 | 318 | 287 | <= 150 | |
| N42SH | 13.2 | 12.9 | 1.32 | 1.26 | > = 11.8 | > = 939 | > = 20 | > = 1592 | 42 | 38 | 334 | 302 | <= 150 | |
| N44SH | 13.7 | 13 | 1.37 | 1.3 | > = 12.1 | > = 963 | > = 20 | > = 1592 | 45 | 41 | 358 | 326 | <= 150 | |
| N46SH | 13.8 | 13.4 | 1.38 | 1.34 | > = 12.5 | > = 965 | > = 20 | > = 1592 | 47 | 43 | 374 | 342 | <= 150 | |
| أوه | N33UH | 12.2 | 11.4 | 1.22 | 1.14 | > = 10.7 | > = 851 | > = 25 | > = 1990 | 35 | 31 | 279 | 2247 | <= 180 |
| N35UH | 12.5 | 11.8 | 1.25 | 1.18 | > = 11.0 | > = 875 | > = 25 | > = 1990 | 37 | 33 | 295 | 263 | <= 180 | |
| N38UH | 13 | 12.3 | 1.3 | 1.23 | > = 11.6 | > = 915 | > = 25 | > = 1990 | 40 | 36 | 318 | 287 | <= 180 | |
| N40UH | 13.2 | 12.6 | 1.32 | 1.26 | > = 10.5 | > = 836 | > = 25 | > = 1990 | 42 | 38 | 334 | 289 | <= 180 | |
| EH | N30EH | 11.7 | 10.9 | 1.17 | 1.09 | > = 10.2 | > = 812 | > = 30 | > = 2388 | 32 | 28 | 255 | 223 | <= 200 |
| N33EH | 12.2 | 11.4 | 1.22 | 1.14 | > = 10.7 | > = 851 | > = 30 | > = 2388 | 35 | 31 | 279 | 2247 | <= 200 | |
| N35EH | 12.5 | 11.8 | 1.25 | 1.18 | > = 11.0 | > = 875 | > = 30 | > = 2388 | 37 | 33 | 295 | 263 | <= 200 | |
| N38EH | 13 | 12.2 | 1.3 | 1.22 | > = 11.5 | > = 915 | > = 30 | > = 2387 | 40 | 36 | 318 | 287 | <= 200 | |
| آه | N28AH | 11 | 10.4 | 1.1 | 1.04 | > = 9.70 | > = 772 | > = 35 | > = 2786 | 29 | 26 | 231 | 207 | <= 220 |
| N30AH | 11.7 | 10.8 | 1.17 | 1.08 | > = 10.2 | > = 812 | > = 35 | > = 2786 | 32 | 28 | 255 | 223 | <= 220 | |
| N33AH | 12.2 | 11.4 | 1.22 | 1.14 | > = 10.7 | > = 851 | > = 35 | > = 2786 | 35 | 31 | 279 | 247 | <= 220 | |
| N35AH | 12.5 | 11.7 | 1.25 | 1.17 | > = 11.0 | > = 876 | > = 35 | > = 2386 | 37 | 33 | 295 | 263 | <= 220 | |
|
|
