SMC Soft Magnetic Composite

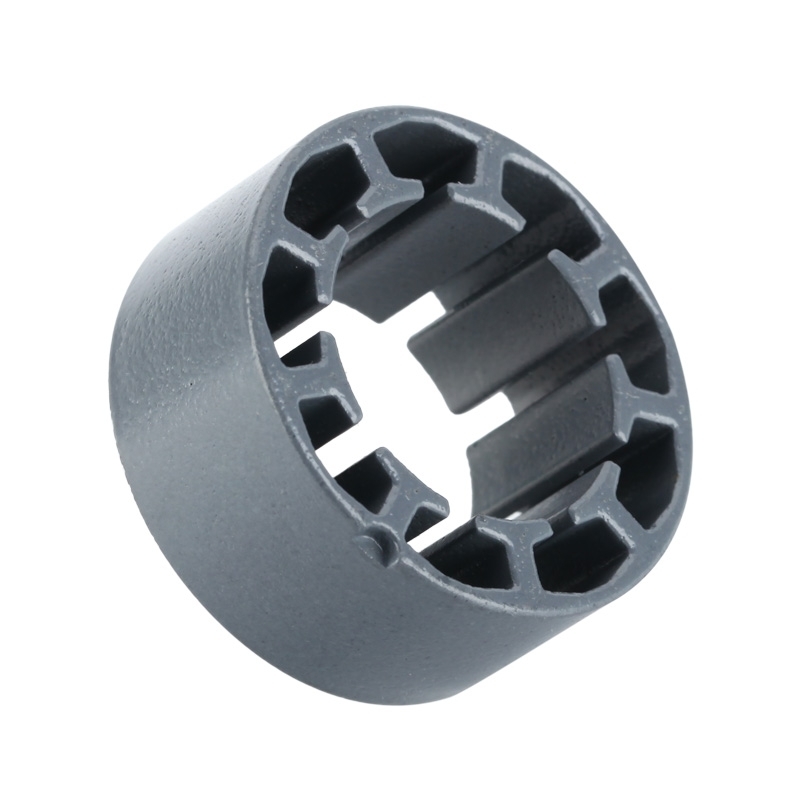

SMC Somaloy Soft Magnetic Composite for BLDC Motors

جميع الفئات

مغناطيس نيوديميوم دائم

مغناطيس دائم الفريت

مغناطيس قوس النيوديميوم

مغناطيس قرص نيوديميوم

الجمعية المغناطيسية الدائمة المخصصة

اقتران مغناطيسي دائم

مغناطيس نيوديميوم المستعبدين

المغناطيس الدائم للمحرك الكهربائي

مغناطيس الكوبالت السماريوم

SMC Soft Magnetic Composite

اتصل بنا

Joy Liu

joy.lau@qiuyong.com

86-13527479978

اتصل الآن

SMC Somaloy Soft Magnetic Composite for BLDC Motors

الـ MOQ:	500

معلومات مفصلة

وصف المنتج

معلومات مفصلة

مكان المنشأ:

الصين

يكتب:

مركب مغناطيسي ناعم

مركب:

مغناطيس الفريت

شكل:

مخصصة

تسامح:

± 10 ٪ ، التسامح القياسي

خدمة المعالجة:

صب

درجة:

الصومال 500 1P/700 1P/700 3P/1000 3P

كثافة:

7.4 جم/سم3

طلاء:

طبقة عازلة

يعالج:

الضغط

الخصائص المغناطيسية:

تحسن ، مسارات التدفق ثلاثي الأبعاد

تكوين المواد:

جزيئات مسحوق الحديد

طريقة الإنتاج:

تعدين المساحيق

إدي الخسارة الحالية:

أقل بترددات عالية

كثافة الطاقة:

ارتفاع من خلال التدفق المغناطيسي ثلاثي الأبعاد

مرونة التصميم:

أشكال معقدة ممكنة

إبراز:

Somaloy SMC for BLDC motors,Soft magnetic composite material,Somaloy motor core material

Soft magnetic composite material

Somaloy motor core material

وصف المنتج

SMC Somaloy Soft Magnetic Composite for BLDC Pump Axial Flux Motor

Product Specifications

Attribute	Value
Type	Soft Magnetic Composite
Composite	Ferrite Magnet
Shape	Customized
Application	Industrial Magnet
Tolerance	±10%, Standard Tolerance
Processing Service	Moulding
Grade	Soft Magnetic Composite, Somaloy 500 1P/700 1P/700 3P/1000 3P
Delivery Time	31-45 days
Product Name	Soft Magnetic Composite(SMC)
Size	Customized Size
Density	7.4g/cm3
Coating	Insulating layer
Processing	Pressing
Use & Application	Industrial motors etc.
Specifications	All shapes
Quality System	ISO/TS16949:2008

Product Description

Soft magnetic composites (SMCs) are emerging as a superior option to enhance motor performance and design across various industries.
Next-generation motors utilize soft magnetic composites (SMCs) featuring improved magnetic properties, 3D flux paths, and custom geometries.
SMC materials consist of iron powder particles coated with an electrically insulating layer, formed into complex shapes through powder metallurgy, enabling three-dimensional magnetic circuit design.

Applications

Automotive:

Traction motors
Air conditioning compressors
Pumps (cooling, oil, etc.)
DC/DC converters
On-vehicle chargers

Industrial:

Air conditioning compressors
Ventilation fans
Solar power systems
Industrial motor drives
Off-board battery charging

Key Advantages

Compact design: Reduces both size and weight of components
High performance: Meets the most demanding efficiency requirements
Cost efficiency: Compact designs require less material with minimal waste production
High power density: Enabled by 3D magnetic flux
Reduced eddy current losses: Superior performance at high frequencies compared to lamination steel
Design flexibility: Complex shapes enable innovative product designs
Operational benefits: Copper savings, quick response, fast and accurate drive, high-intensity operations
Parameter

树脂 Resin	磁粉 Magnetic powder	取向性能 Directional property	牌号 Grade	磁性能 Magnetic properties										其它性能 Other properties
				磁性能 Magnetic properties										其它性能 Other properties
				Br		Hcb		Hcj		(BH)max		α (Br)	β (Hcj)	密度 Density	弯曲强度 Flexural Strength
				kG	T	kOe	kA/m	kOe	kA/m	MGOe	kJ/m3	%/K	%/K	g/cm3	MPa
				kG	T	kOe	kA/m	kOe	kA/m	MGOe	kJ/m3	%/K	%/K	g/cm3	MPa
PA11 /PA12	钐铁氮+铁氧体 SmFeN+Ferrite	各向异性 Anisotropic	HSFD30b	3.73	0.37	2.56	204	4.83	384	3.30	26.4	-0.10	-0.38	3.80	80
			HSFD40b	4.40	0.44	3.05	243	6.28	500	4.30	34.4	-0.09	-0.40	3.90	77
			HSFD50b	4.90	0.49	3.54	282	6.55	521	5.25	42.0	-0.09	-0.43	4.00	78
			HSFD60b	5.39	0.54	4.03	321	6.80	541	6.37	51.0	-0.08	-0.45	4.05	79
			HSFD70b	5.69	0.57	4.39	349	6.93	551	7.30	58.4	-0.07	-0.47	4.10	75
	钐铁氮 SmFeN		HSD80b	6.03	0.60	5.07	403	7.80	621	8.39	67.1	-0.07	-0.50	4.15	79
			HSD90b	6.39	0.64	5.10	406	7.70	613	9.15	72.8	-0.07	-0.50	4.27	77
			HSD100b	6.53	0.65	5.12	407	7.40	589	9.81	78.5	-0.07	-0.50	4.35	79
			HSD110b	6.85	0.69	5.35	426	7.15	569	10.85	86.8	-0.07	-0.50	4.53	71
	注射钕铁硼 Injection NdFeB		HND120a	7.52	0.75	5.79	461	12.6	1003	12.10	96.3	-0.13	-0.59	4.75	85
			HND120a	7.52	0.75	5.79	461	12.6	1003	12.10	96.3	-0.13	-0.59	4.75	85
			HND150a	8.36	0.84	6.63	528	12.0	955	15.20	120.9	-0.13	-0.59	5.25	80
			HND150a	8.36	0.84	6.63	528	12.0	955	15.20	120.9	-0.13	-0.59	5.25	80
	钕铁硼+钐铁氮 NdFeB+SmFeN		HSND100a	6.89	0.69	5.12	408	8.81	701	10.30	82.0	-0.10	-0.57	4.45	99
			HSND120a	7.81	0.78	5.70	454	10.2	812	12.47	99.3	-0.10	-0.57	4.95	91
			HSND140a	8.20	0.82	6.23	496	11.0	876	13.90	110.7	-0.10	-0.57	5.15	85
			HSND150a	8.40	0.84	6.30	501	10.5	836	14.85	118.3	-0.10	-0.57	5.28	88

Product Showcase

Buyer Guide

Order information required:
- Product material, size, grade, surface coating, quantities
- Sketch or drawing with dimensions and tolerances if available
- Magnetization requirements: magnetized/unmagnetized, direction
- Intended application details
OEM/ODM services: Custom requirements are acceptable
Samples: 1-2 weeks for OEM/ODM samples, 5-10 days for stock items
Order placement: Via email or online
Order procedure: Discussion → PI confirmation → Payment → Production (15-25 days) → Shipment
Payment methods: T/T, Paypal, Western Union, L/C, D/A, D/P
Factory visits: Welcome by appointment
